Details

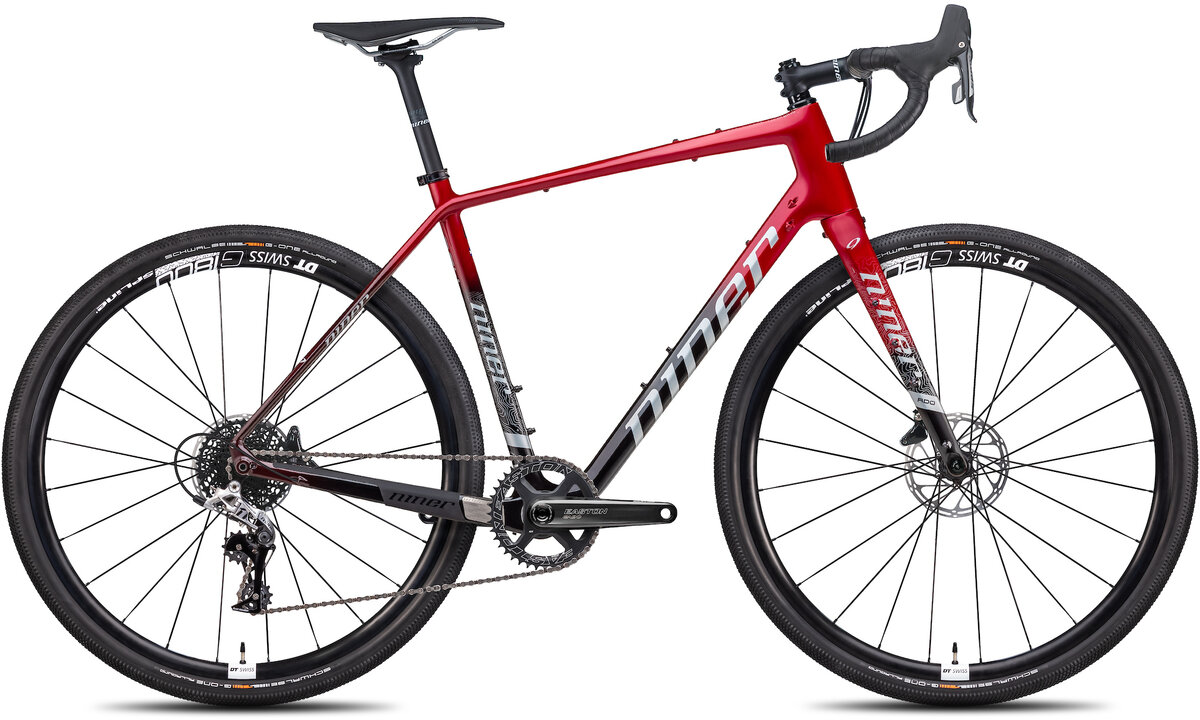

With our newest RLT 9 RDO, we built you a high end carbon gravel bike that you'll want to ride all the time, to any place. With 50c tire clearance, multiple fitments for accessories and cargo, plus slick frame features and a smooth ride, you can pedal it and be happy - anywhere and everywhere.
47cm | 50cm | 53cm | 56cm | 59cm | 62cm | ||
---|---|---|---|---|---|---|---|
A. Reach (mm) | 362 | 366 | 374 | 384 | 398 | 405 | |
B. Stack (mm) | 535 | 556 | 577 | 592 | 613 | 634 | |
C. Standover (mm) | 693 | 731 | 754 | 780 | 804 | 827 | |
D. Effective Top Tube (mm) | 510 | 525 | 545 | 565 | 585 | 605 | |
E. Head Tube Angle | 70° | 70.5° | 71° | 71.5° | 72° | 72.5° | |
F. Head Tube Length (mm) | 105 | 125 | 145 | 165 | 185 | 205 | |
G. Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 72.5° | |
H. Seat Tube Length (mm) | 430 | 460 | 490 | 520 | 550 | 580 | |
J. Bottom Bracket Drop (mm) | 75 | 75 | 75 | 70 | 70 | 70 | |
K. Fork Rake/Offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 | |
M. Wheelbase (mm) | 1000 | 1007 | 1017 | 1030 | 1045 | 1054 | |
N. Front to Center (mm) | 581 | 589 | 600 | 611 | 626 | 634 | |
O. Chainstay Length (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
Specs
Frame | NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE |
---|---|
Fork | NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE |
Rims | DT Swiss G 1800 SPLINE, 700c aluminum clincher |
Hubs | DT Swiss 370 Centerlock with 3-Pawl |
Spokes | DT Swiss aero comp wide straight pull |
Axles |
Front: 12x100mm thru axle Rear: 12x142mm thru axle |
Tires | SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45 |
Bottom Bracket | EASTON PF30 |
Crankset | EASTON EA90 40T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM) |
Chainrings | 40T |
Shifters | SRAM RIVAL 1 HRD 11SP |
Rear Derailleur | SRAM RIVAL 1 LONG CAGE |
Cassette/Freewheel | SRAM PG 1130 11SP 11-42T |
Chain | SRAM PC 1130 11SP |
Brakes | SRAM RIVAL 1 HRD FM |
Brake Levers | SRAM RIVAL 1 HRD |
Handlebars | EASTON EA50 AX (47/50- 420MM, 53/56- 440MM, 59/62- 460MM) |
Tape/Grips | NINER BAR TAPE |
Stem | NINER ALLOY STEM, NINER GRAPHIC (47/50- 80MM, 53/56- 90MM, 59/62- 100MM) |
Headset | NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40 |
Seatpost | NINER CARBON SEAT POST, 400MM, NINER GRAPHIC |
Saddle | NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Blood Red / 53cm | 008032253401 | 00-803-22-53-40 | 210000018749 |
Blood Red / 56cm | 008032256402 | 00-803-22-56-40 | 210000018750 |
Blood Red / 59cm | 008032259403 | 00-803-22-59-40 | 210000021513 |
